Radically new solar plant designs (#4): X in East-West, “The Dutchman”

Solar plants are changing. From one-size-fits-all towards well-adapted systems that give better technical answers to the most common cost problems. With these posts I’d like to contribute with new technologies that I’ve developed over the last couple of years.

In my last posts I’ve showed several variations of the X-panel technology solar where the solar panels were installed either in a „close to portrait“, in a „close to landscape“ or in a “middle position” orientation. These arrangements all help the solar panels to stay clean due to better evacuation of (dirty) water. This time I’ll show a solar plant design that we are working on for a client in the Netherlands. Due to the “SDE+ grant scheme”a big part of the new solar parks in the Netherlands is being built in east-west orientation, with typical slope angles of 10 degrees. Therefore I call this X east-west solar plant design respectfully “The Dutchman”.

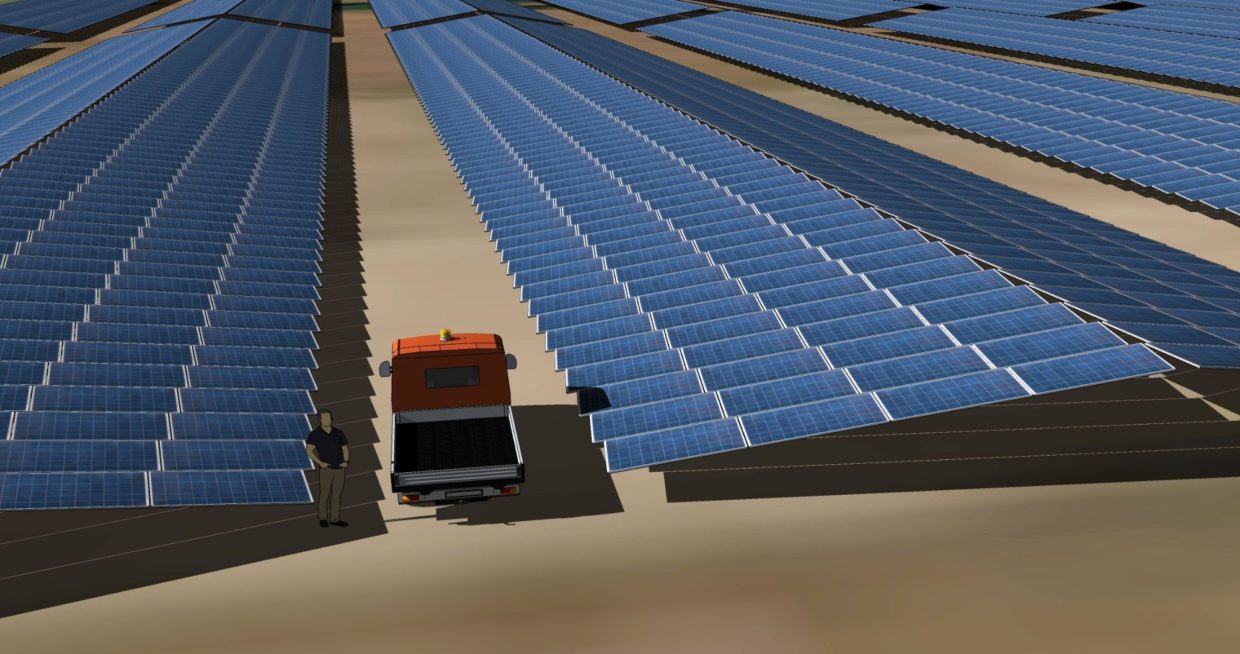

solar plant design (4): X east-west, “The Dutchman”

Addressed solar problems:

  • yield losses due to soiling, significantly reduced by rotating the panels
  • limited ground coverage ratios due to shading effects in standard south-facing solar plants, improved by the east-west design
  • high wind loads in standard south-facing solar plants, reduced by a refined east-west arrangement with aerodynamical properties, especially the “shifted” version.

Soiling due to bad evacuation of the rainwater.

Most of today’s solar panels are embedded in aluminum frames. At low slope angles the lower frame rail of the panel builds a horizontal raised rib at the lower edge of the module. This rib causes a back-water effect. The filthy water is not correctly run off resulting in the accumulation of dirt on the glass alongside the lower frame rail. This often results in significant loss in yield. This is even more true for those east-west systems where the panlel slope is often at 10 degrees

Like all other patent pending X-panel arrangements, “The Dutchman” overcomes this problem in a simple, yet extremely effective way: By slightly rotating the panel on its own plane, the horizontal corrugation disappears. The lower frame rails now shows a slope ensuring proper runoff of rainwater. The only thing that is left after a rainfall is a triangular spot that is, however, in the very corner and far away from the lowest cell. This ensures stable energy yields.

Another nice aspect of the “Dutchman”-design lies in it’s aerodynamical properties. Given by the unique geometry there are some kind of “V-shaped” slots that are formed at the ridge of the adjacent module tables. These (adjustable) slots might help a lot to compensate for air pressure difference between above and below the panels during strong gusts of wind. Same wind, less charge.

This compensation might be even enhanced with a variation where the panel lines are “shifted” against each other a couple of centimeters. The gaps that result from the shift open up the structure to be more able “to breathe”. This might cool the solar panels as well since the circulation of air is enhanced.

To sum up, the main benefits of “The Dutchman” are:

  • perfect self-cleaning capabilities for reliable energy yields
  • lower module angles for higher ground coverage ratios
  • less wind loads due to better pressure equalization within the system
  • off-the-shelf hardware, easy installation
  • the solar panel’s „max. load“ clamping zones are fully respected
  • reduced maintenance cost due to longer module cleaning cycles

About the X-panel technology: Please note that I publish my ideas only after having filed for corresponding patents. The patent for this technology is pending in the European Union, in the US, in Japan and in China. So please check with me and/or with public patent registers before using this ideas for commercial purposes.

Mirko Dudas, CEO at solidenergie GmbH

About me: Although “inventor” sounds antiquated, it may describe best what I’ve been doing the last ten years. My solar patents are in force in twelve countries, with more patents pending, and a sketchbook full of ideas. Project developers have built utility-scale solar parks using these technologies, German solar racking manufacturers have signed license agreements. So far, so good. Now it’s time to roll out these technologies internationally. Together with the best partners.
